REACTION ASSEMBLY

PACKED COLUMN TYPE ABSORBER

REACTION CUM DISTILLATION ASSEMBLY

FALLING FILM TYPE ABSORBER

SIMPLE DISTILLATION UNIT

LIQUID / LIQUID EXTRACTION UNIT

FRACTIONAL  DISTILLATION UNIT

SOLID / LIQUID EXTRACTION UNIT

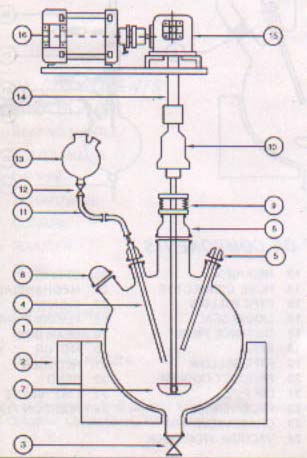

REACTION ASSEMBLY

LIST OF COMPONENTS

1. REACTION FLASK
2. HEATING MANTLE
3. BOTTOM VALVE
4. DIP PIPE
5. THERMOWELL
6. CLOSURE
7. STIRRER
8. REDUCER.
9. MECHANICAL SEAL
10. CHUCK
11. BEND
12.LINE VALVE
13. ADDITION FLASK.
14. FLEXIBLE SHAFT
15. GEAR BOX.
16. MOTOR.

TOP

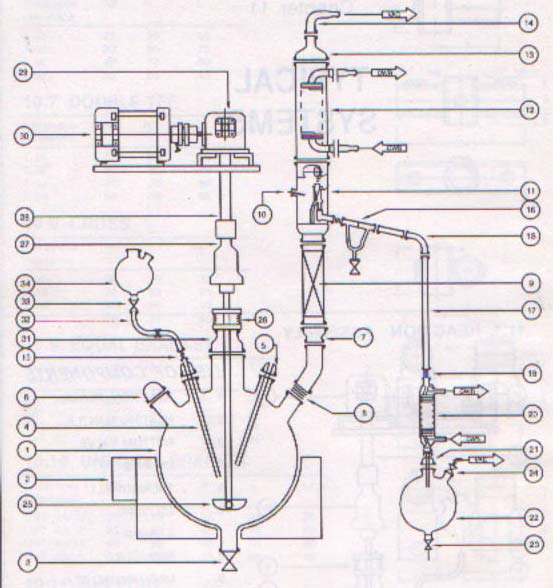

REACTION CUM DISTILLATION ASSEMBLY

LIST OF COMPONENTS
1. REACTION FLASK.
2. HEATING MANTLE.
3. BOTTOM VALVE
4. DIP PIPE.
5. THERMOWELL.
6. CLOSURES.
7. REDUCER
8. PTFE BELLOW
9. PACKED COLUMN.
10. THERMOWELL.
11. MAGNETIC REFLUX DIVIDER.
12. CONDENSER
13. REDUCER.
14. HOSE CONNECTOR
15. PTFE BELLOW
16. LIQUID SEAL.
17. DISTANCE PIECE.
18. BEND
19. PTFE BELLOW
20. PRODUCT COOLER
21. DIP PIPE.
22. RECEIVER.
23. DRAIN VALVE.
24. VACCUM STOP COCK.
25. STIRRER.
26. MECHANICAL SEAL
27. CHUCK.
28. FLEXIBLE SHEET
29. GEAR BOX
30. MOTOR
31. REDUCER
32. BEND
33. LINE VALVE 25 NB.
34. ADDITION FLASK

TOP

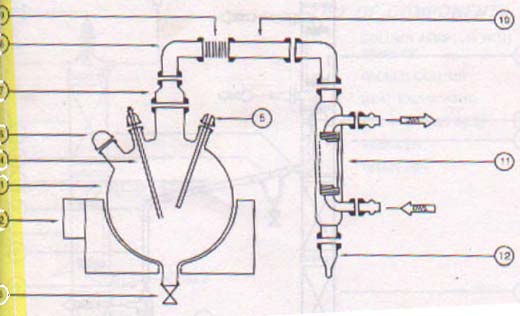

SIMPLE DISTILLATION UNIT

LIST OF COMPONENTS
1. REBOILER VESSEL
2. HEATING MANTLE
3. BOTTOM VALVE
4. DIP PIPE
5. THERMOWELL
6. CLOSURE
7. REDUCER
8. BEND
9. BELLOW
10. DISTANCE PIECE
11. CONDENSER
12. DISTILLATE NOZZLE
This type of Distillation Unit (except flask) can be fitted on Glass lined Reactor with appropriate size of Columns, Condensers, Reflux Divider etc.

TOP

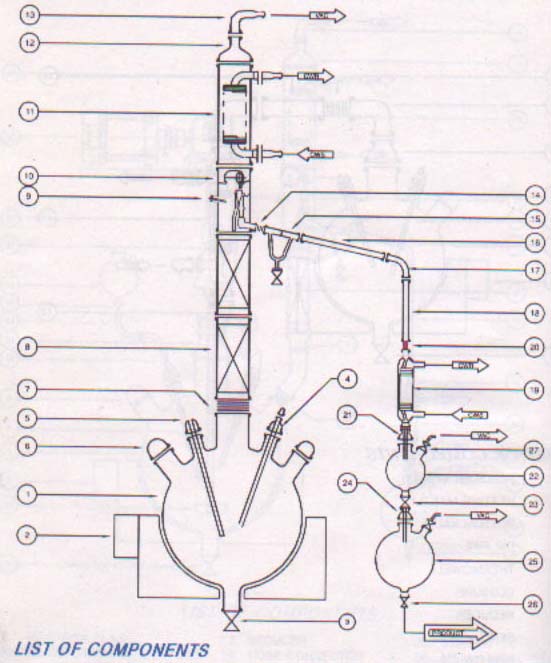

FRACTIONAL  DISTILLATION UNIT

LIST OF COMPONENTS
1. REACTION FLASK.
2. HEATING MANTLE.
3. BOTTOM VALVE.
4. DIP PIPE.
5. THERMOWELL
6. CLOSURES
7. PTFE BELLOW
8. PACKED COLUMN
9. THERMOWELL
10. MAGNETIC REFLUX DIVIDER
11. CONDENSER
12. REDUCER
13. HOSE CONNECTOR
14. PTFE BELLOW
15. LIQUID SEAL
16. DISTANCE PIECE
17. BEND
18. DISTANCE PIECE
19. PRODUCT COOLER
20 PTFE BELLOW
21 DIP PIPE
22 RECEIVER
23 LINE VALVE
24 DIP PIPE
25 RECEIVER
26 DRAIN VALVE
27 VACCUM STOP COCK

TOP

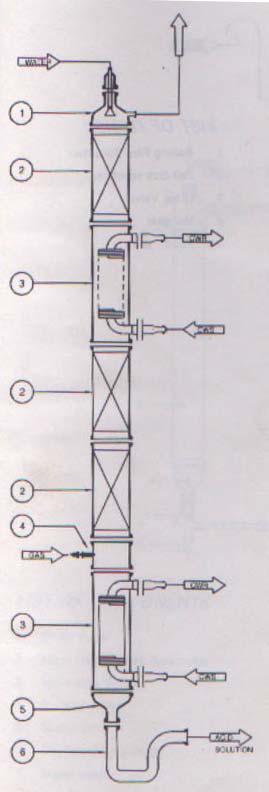

PACKED COLUMN TYPE ABSORBER

LIST OF COMPONENTS

1. COLUMN ADAPTER WITH SPARGER
2. PACKED COLUMN
3. HEAT EXCHANGER.
4. TEE WITH GAS INLET.
5. REDUCER
6. DRAIN PIPE.

TOP

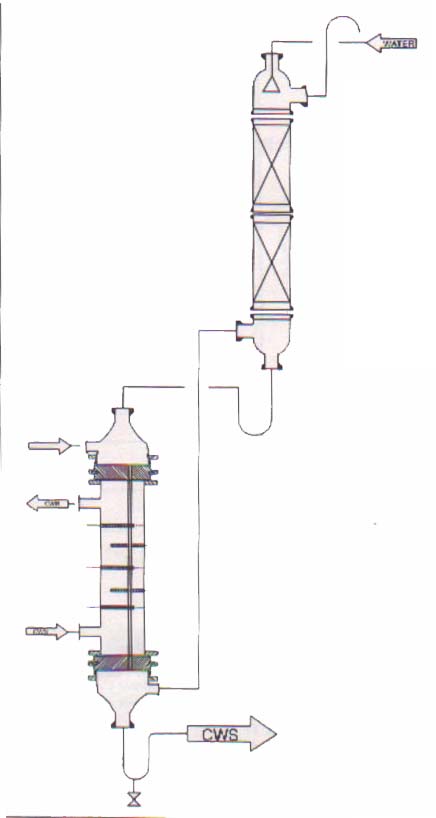

FALLING FILM TYPE ABSORBER

LIST OF COMPONENTS

1. FALLING FILM ABSORBER
2. TAIL GAS SCRUBBER
3. DRAIN VALVE
4. U-SEAL
5. FEED - PIPE

TOP

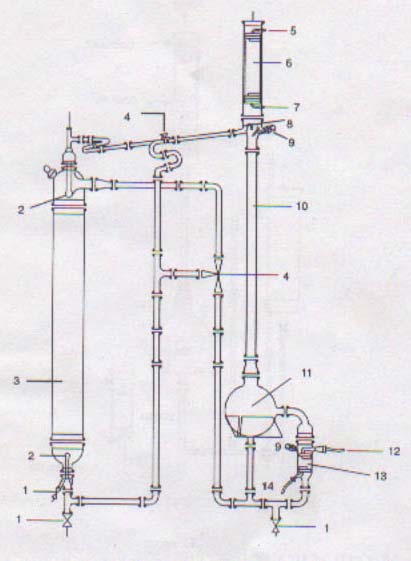

LIQUID / LIQUID EXTRACTION UNIT

LIST OF COMPONENTS

1. DRAIN VALVE
2. ROSE TYPE SOLVENT DISTRIBUTOR
3. EXTRACTION VESSEL
4. 3-WAY COCKS
5.WATER OUTLET
6. OVERHEAD CONDENSER
7. WATER INLET
8. REFLUX DIVIDER
9. THERMOMETER POCKET
10. VAPOUR LINE.
11. 20 Lit. SPHERICAL VESSEL.
12. STEAM INLET
13. STEAM HEATED BOILER
14. CONDENSATE OUTLET

TOP

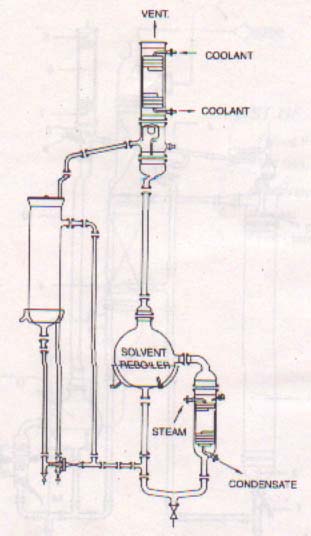

SOLID / LIQUID EXTRACTION UNIT

LIST OF COMPONENTS

1. DRAIN VALVE
2. EXTRACTION VESSEL CONTAINING FIBRE BAG
3. SOLVENT RETURN LINE TO REBOILER
4. SOLVENT FEED
5. WATER OUTLET
6. OVERHEAD CONDENSER
7. WATER INLET
8. REFLUX DIVIDER
9. THERMOMETER POCKET
10. VAPOUR LINE.
11. 20 Lit. SPHERICAL VESSEL.
12. STEAM INLET
13. STEAM HEATED BOILER
14. CONDENSATE OUTLET

TOP
